Product Summary

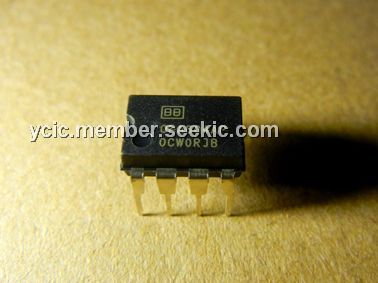

The OPA604AP is a FET-input operational amplifier designed for enhanced AC performance. Very low distortion, low noise and wide bandwidth provide superior performance in high quality audio and other applications requiring excellent dynamic performance. New circuit techniques and special laser trimming of dynamic circuit performance yield very low harmonic distortion. The result is an op amp with exceptional sound quality. The low-noise FET input of the OPA604AP provides wide dynamic range, even with high source impedance. Offset voltage is laser-trimmed to minimize the need for interstage coupling capacitors. The OPA604AP is available in 8-pin plastic mini-DIP and SO-8 surface-mount packages, specified for the -25℃ to +85℃ temperature range.
Parametrics
OPA604AP absolute maximum ratings: (1)Power Supply Voltage: ±25V; (2)Input Voltage: (V–) -1V to (V+) +1V; (3)Output Short Circuit to Ground: Continuous; (4)Operating Temperature: -40℃ to +100℃; (5)Storage Temperature: -40℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s) AP: +300℃; (8)Lead Temperature (soldering, 3s) AU: +260℃.
Features
OPA604AP features: (1)LOW DISTORTION: 0.0003% at 1kHz; (2)LOW NOISE: 10nV/√Hz; (3)HIGH SLEW RATE: 25V/μs; (4)WIDE GAIN-BANDWIDTH: 20MHz; (5)UNITY-GAIN STABLE; (6)WIDE SUPPLY RANGE: VS = ±4.5 to ±24V; (7)DRIVES 600Ω LOAD; (8)DUAL VERSION AVAILABLE (OPA2604).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OPA604AP |
Texas Instruments |
Audio Amplifiers FET-Input Audio Op Amp |
Data Sheet |
|
|
||||||||||||
|
OPA604APG4 |
Texas Instruments |
Audio Amplifiers FET-Input Audio Op Amp |
Data Sheet |
|
|
||||||||||||
