Product Summary

The SN74HC164N is an 8-bit shift register, which features AND-gated serial inputs and an asynchronous clear (CLR) input. The gated serial (A and B) inputs permit complete control over incoming data; a low at either input inhibits entry of the new data and resets the first flip-flop to the low level at the next clock (CLK) pulse. A high-level input of the SN74HC164N enables the other input, which then determines the state of the first flip-flop. Data at the serial inputs can be changed while CLK is high or low, provided the minimum setup time requirements are met. Clocking occurs on the low-to-high-level transition of CLK.

Parametrics

SN74HC164N absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±25 mA; (5)Continuous current through VCC or GND: ±50 mA; (6)Package thermal impedance, θJA (see Note 2): D package: 86℃/W, N package: 80℃/W, NS package: 76℃/W, PW package: 113℃/W; (7)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74HC164N features: (1)Wide Operating Voltage Range of 2 V to 6 V; (2)Outputs Can Drive Up To 10 LSTTL Loads; (3)Low Power Consumption, 80-μA Max ICC; (4)Typical tpd = 20 ns; (5)±4-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)AND-Gated (Enable/Disable) Serial Inputs; (8)Fully Buffered Clock and Serial Inputs; (9)Direct Clear.

Diagrams

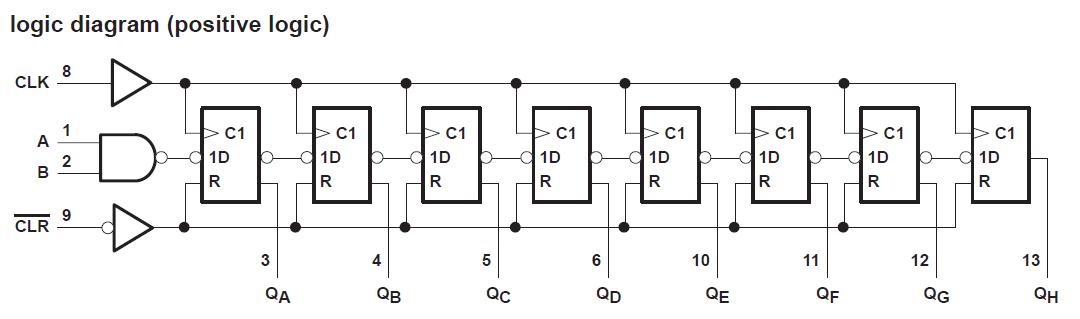

SN74HC164N block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

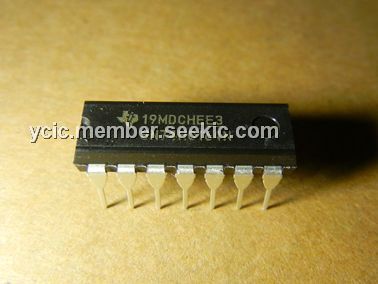

SN74HC164N
SN74HC164N

Texas Instruments

Counter Shift Registers 8-Bit Parallel-Load

Data Sheet

0-1: $0.22
1-25: $0.19
25-100: $0.14
100-250: $0.11
SN74HC164NE4
SN74HC164NE4

Texas Instruments

Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register

Data Sheet

0-1: $0.29
1-25: $0.23
25-100: $0.18
100-250: $0.12
SN74HC164NSR
SN74HC164NSR

Texas Instruments

Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register

Data Sheet

0-1: $0.26
1-25: $0.22
25-100: $0.17
100-250: $0.10
SN74HC164NSRG4
SN74HC164NSRG4

Texas Instruments

Counter Shift Registers 8B Parallel Out Serial Shift Registr

Data Sheet

0-1: $0.22
1-25: $0.17
25-100: $0.15
100-250: $0.11
SN74HC164NSRE4
SN74HC164NSRE4

Texas Instruments

Counter Shift Registers 8-Bit Parallel-Out Ser Shift Register

Data Sheet

0-1: $0.22
1-25: $0.17
25-100: $0.15
100-250: $0.11
