Product Summary

The TLC272CPW is a precision dual operational amplifier, which combine a wide range of input offset voltage grades with low offset voltage drift, high input impedance, low noise, and speeds approaching that of general-purpose BiFET devices. It incorporates internal ESD-protection circuits that prevent functional failures at voltages up to 2000 V as tested under MIL-STD-883C, Method 3015.2.The device also exhibits low voltage single-supply operation, making them ideally suited for remote and inaccessible battery-powered applications.

Parametrics

Absolute maximum ratings over operating free-air temperature range: (1)Supply voltage, VDD:18 V; (2)Differential input voltage, VID:±VDD; (3)Input voltage range, VI (any input):–0.3 V to VDD; (4)Input current, II:±5 mA; (5)output current, IO (each output):±30 mA; (6)Total current into VDD:45 mA; (7)Total current out of GND:45 mA; (8)Duration of short-circuit current at (or below) 25°C:unlimited; (9)Continuous total dissipation:See Dissipation Rating Table; (10)Operating free-air temperature, TA: C suffix:0°C to 70°C;I suffix:–40°C to 85°C;M suffix:–55°C to 125°C; (11)Storage temperature range:–65°C to 150°C; (12)Case temperature for 60 seconds: FK package:260°C; (13)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: D, P, or PW package:260°C; (14)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds: JG package:300°C.

Features

Features:(1)Trimmed Offset Voltage: TLC277: 500 mV Max at 25°C, VDD = 5 V; (2)Input Offset Voltage Drift: Typically 0.1 mV/Month, Including the First 30 Days; (3)Wide Range of Supply Voltages Over Specified Temperature Range: 0°C to 70°C: 3 V to 16 V; –40°C to 85°C: 4 V to 16 V;–55°C to 125°C: 4 V to 16 V; (4)Single-Supply Operation; (5)Common-Mode Input Voltage Range Extends Below the Negative Rail (C-Suffix,I-Suffix types); (6)Low Noise: Typically 25 nV//Hz at f = 1 kHz; (7)Output Voltage Range Includes Negative Rail; (8)High Input impedance: 1012 W Typ; (9)ESD-Protection Circuitry; (10)Small-Outline Package Option Also Available in Tape and Reel; (11)Designed-in Latch-Up Immunity.

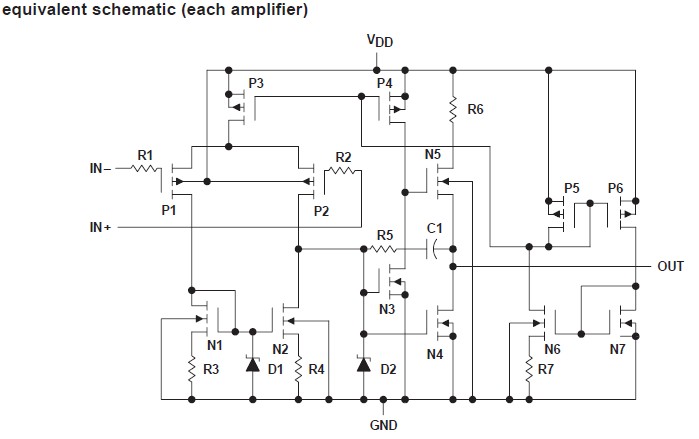

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TLC272CPW
TLC272CPW

Texas Instruments

Operational Amplifiers - Op Amps Dual Single

Data Sheet

0-1: $0.49
1-25: $0.43
25-100: $0.33
100-250: $0.33
TLC272CPWG4
TLC272CPWG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Single Supply Op Amp

Data Sheet

0-1: $0.50
1-25: $0.39
25-100: $0.34
100-250: $0.30
TLC272CPWR
TLC272CPWR

Texas Instruments

Operational Amplifiers - Op Amps Dual S-Sply Op Amp

Data Sheet

0-1: $0.38
1-25: $0.30
25-100: $0.26
100-250: $0.22
TLC272CPWRG4
TLC272CPWRG4

Texas Instruments

Operational Amplifiers - Op Amps Dual Single Supply Op Amp

Data Sheet

0-1: $0.41
1-25: $0.32
25-100: $0.28
100-250: $0.23
