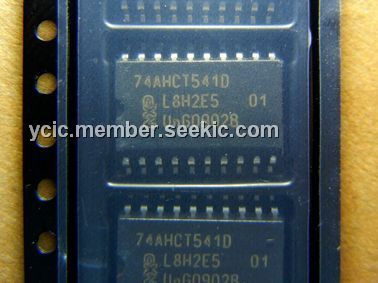

74AHCT541D

74AHCT541D, 3-state Octal buffer/line driver, SOP20, 7V, 20mA, NXP Semiconductors

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.31 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.31

PartNumber:: 74AHCT541D

Brand:: NXP Semiconductors - nxp | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lena's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-18

From Other Seller

Part Number:74AHCT541D
US $0.30 - 0.31
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
iphone5 data cable

US $4.00 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 74AHCT541D is an octal non-inverting buffer/line driver with 3-state bus compatible outputs. The 74AHCT541D is a high-speed Si-gate CMOS device. The 3-state outputs are controlled by the output enable inputs OE0 and OE1. A HIGH onOEncauses the outputs to assume a high-impedance OFF-state.

Parametrics

74AHCT541D absolute maximum ratings: (1)DC supply voltage, VCC: -0.5 to +7.0 V; (2)input voltage, VI: -0.5 to +7.0 V; (3)DC input diode current, IIK: -20 mA; (4)DC output diode current, IOK: ±20 mA; (5)DC output source or sink current, IO: ±25 mA; (6)DC VCCor GND current, ICC: ±75 mA; (7)storage temperature, Tstg: -65 to +150℃; (8)power dissipation per package, PD: 500 mW.

Features

74AHCT541D features: (1)ESD protection: HBM EIA/JESD22-A114-A exceeds 2000 V; MM EIA/JESD22-A115-A exceeds 200 V; CDM EIA/JESD22-C101 exceeds 1000 V; (2)Balanced propagation delays; (3)All inputs have a Schmitt-trigger action; (4)Inputs accepts voltages higher than VCC; (5)For AHC only: operates with CMOS input levels; (6)For AHCT only: operates with TTL input levels; (7)Specified from -40 to +85℃ and -40 to +125℃.
