Product Summary

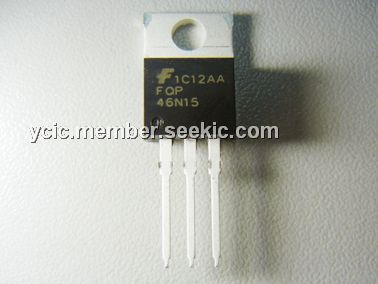

The FQP46N15 is an N-Channel enhancement mode power field effect transistor produced using Fairchild’s proprietary, planar stripe, DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. The FQP46N15 is well suited for low voltage applications such as audio amplifire, high efficiency switching for DC/DC converters, and DC motor control, uninterrupted power supply.
Parametrics
FQP46N15 absolute maximum ratings: (1)Drain-Source Voltage, VDSS: 150V; (2)Drain Current - Continuous (TC = 25℃), ID: 45.6A; -Continuous (TC = 100℃)ID: 32.2A; (3)Drain Current - Pulsed, IDM: 182.4A; (4)Gate-Source Voltage, VGSS: ±25V; (5)Single Pulsed Avalanche Energy, EAS: 650mJ; (6)Avalanche Current, IAR: 45.6A; (7)Repetitive Avalanche Energy, EAR: 21mJ; (8)Peak Diode Recovery dv/dt, dv/dt: 6.0V/ns; (9)Power Dissipation (TC = 25℃), Pd:210W; -Derate above 25℃, Pd: 1.43W/℃; (10)Operating and Storage Temperature Range, Tj,Tstg: -55 to +175℃; (11)Maximum lead temperature for soldering purposes, 1/8" from case for 5 seconds, TL: 300℃.
Features
FQP46N15 features: (1)45.6A, 150V, RDS(on) = 0.042Ω @VGS = 10V; (2)Low gate charge(typical 85nC); (3)Low crss(typical 100pF); (4)Fast switching; (5)100% avakanche tested; (6)Improved dv/dt capability; (7)175℃ maximum junction temperature rating.
