Product Summary

The TL072IDR is a low-noise JFET-input operational amplifier. It is ideally suited for high-fidelity and audio preamplifier applications. The TL072IDR features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.

Parametrics

TL072IDR absolute maxing ratings: (1)Supply voltage: VCC+: 18V; VCC-: -18V; (2)Differential input voltage, VID: ±30V; (3)Input voltage, VI: ±15V; (4)Operating virtual junction temperature, TJ: 150℃; (5)Case temperature for 60 seconds: FK package: 260℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: J, JG, or W package: 300℃; (7)Storage temperature range, Tstg: -65℃ to 150℃.

Features

TL072IDR features: (1)Low Power Consumption; (2)Wide Common-Mode and Differential Voltage Ranges; (3)Low Input Bias and Offset Currents; (4)Output Short-Circuit Protection; (5)Low Total Harmonic Distortion: 0.003% Typ; (6)Low Noise: Vn = 18 nV/√Hz ̄ Typ at f = 1 kHz; (7)High Input Impedance, JFET Input Stage; (8)Internal Frequency Compensation; (9)Latch-Up-Free Operation; (10)High Slew Rate: 13 V/μs Typ; (11)Common-Mode Input Voltage Range Includes VCC+.

Diagrams

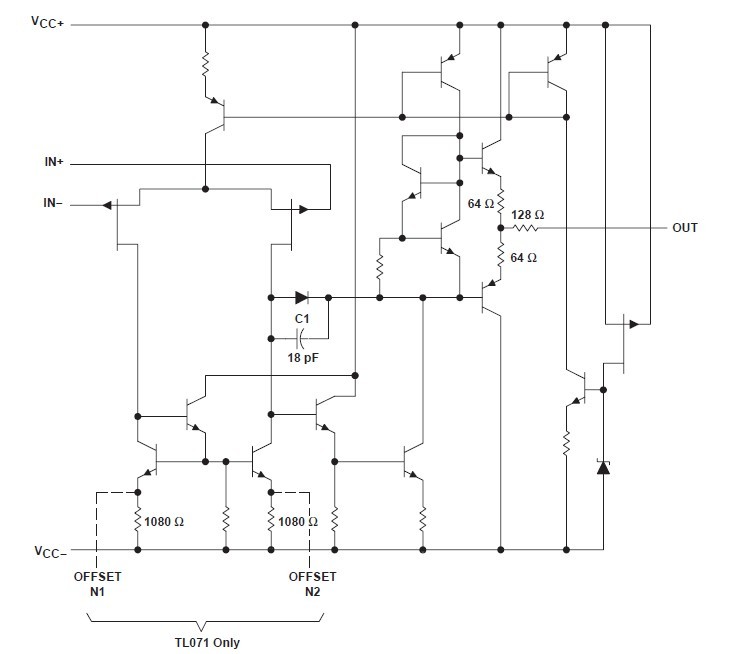

TL072IDR block diagram
