Product Summary
The 24LC64T-I/SN is a 64 Kbit Electrically Erasable PROM. The device is organized as eight blocks of 1K x 8-bit memory with a 2-wire serial interface. Low voltage design permits operation down to 1.8V with standby and active currents of only 1 μA and 1 mA respectively. The 24LC64T-I/SN has been developed for advanced, low power appli-cations such as personal communications or data acquisition. The 24LC64T-I/SN also has a page-write capabil-ity for up to 32 bytes of data. Functional address lines allow up to eight devices on the same bus, for up to 512 Kbits address space. The 24LC64T-I/SN is available in the standard 8-pin PDIP, surface mount SOIC, TSSOP and MSOP packages.
Parametrics
24LC64T-I/SN absolute maximum ratings: (1)VCC: 6.5V; (2)All inputs and outputs w.r.t. VSS: -0.3V to VCC+1.0V; (3)Storage temperature: -65℃ to +150℃; (4)Ambient temp. with power applied: -40℃ to +125℃; (5)ESD protection on all pins: ≥4kV.
Features
24LC64T-I/SN features: (1)Single supply with operation down to 1.8V; (2)Low power CMOS technology, 1 mA active current typical; 1 μA standby current (max.) (I-temp); (3)Organized as 8 blocks of 8K bit (64K bit); (4)2-wire serial interface bus, I2C compatible; (5)Cascadable for up to eight devices; (6)Schmitt Trigger inputs for noise suppression; (7)Output slope control to eliminate ground bounce; (8)100 kHz (24AA64) and 400 kHz (24LC64) com-patibility; (9)Self-timed write cycle (including auto-erase); (10)Page-write buffer for up to 32 bytes; (11)2 ms typical write cycle time for page-write; (12)Hardware write protect for entire memory; (13)Can be operated as a serial ROM; (14)Factory programming (QTP) available; (15)ESD protection > 4,000V; (16)1,000,000 erase/write cycles; (17)Data retention > 200 years; (18)8-lead PDIP, SOIC, TSSOP, and MSOP package; (19)Available temperature ranges: Industrial (I): -40℃ to +85℃; Automotive (E): -40℃ to +125℃.

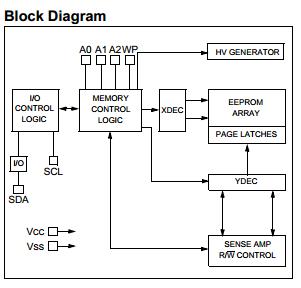

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 24LC64T-I/SN |
Microchip Technology |
EEPROM 8kx8 - 2.5V |
Data Sheet |
|
|
||||||||||||
|
24LC64T-I/SNG |
Microchip Technology |
EEPROM 8kx8 - 2.5V Lead Free Package |
Data Sheet |
Negotiable |
|
||||||||||||
