Product Summary

The JS28F128J3D75 is an Embedded Flash Memory designed as one kind of Numonyx embedded flash memory device that provides improved mainstream performance with enhanced security features. And this device takes advantage of the proven manufacturing experience and is ideal for code and data applications where high density and low cost are required, such as in networking, telecommunications, digital set top boxes, audio recording, and digital imaging.

Parametrics

JS28F128J3D75 absolute maximum ratings: (1)Temperature under Bias Expanded (TA, Ambient):–40 to +85℃; (2)Storage Temperature: -65 to +125℃; (3)VCC Voltage: -2.0 to +5.6V; (4)VCCQ:–2.0 to +5.6V; (5)Voltage on any input/output signal (except VCC, VCCQ): -2.0 to VCCQ(max) +2.0V; (6)ISH Output Short Circuit Current: 100 mA.

Features

JS28F128J3D75 features: (1)Package: 56TSOP; (2)Cell Type: NOR; (3)Density: 128 Mb; (4)Architecture: Sectored; (5)Block Organization: Symmetrical; (6)Typical Operating Supply Voltage: 3 or 3.3V; (7)Sector Size: 128KByte x 128; (8)Support of Page Mode: Yes; (9)Timing Type: Asynchronous; (10)Operating Temperature: -40 to 85℃; (11)Interface Type: Parallel.

Diagrams

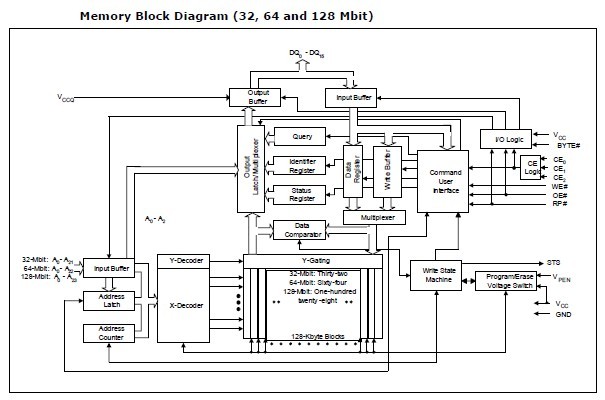

JS28F128J3D75 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

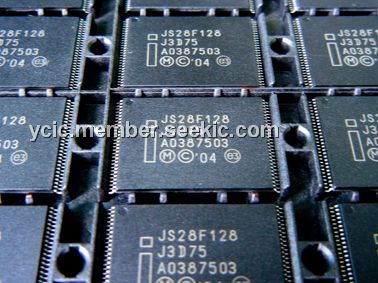

JS28F128J3D75
JS28F128J3D75

Other


Data Sheet

Negotiable
JS28F128J3D75A
JS28F128J3D75A


IC FLASH 128MBIT 75NS 56TSOP

Data Sheet

Negotiable
JS28F128J3D75B
JS28F128J3D75B


IC FLASH 128MBIT 75NS 56TSOP

Data Sheet

Negotiable
