Product Summary

The AT90CAN128-16AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the AT90CAN128-16AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers.

Parametrics

AT90CAN128-16AU absolute maximum ratings: (1)Industrial Operating Temperature: -40℃ to +85℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on any Pin except RESET with respect to Ground: -0.5V to VCC +0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Voltage on VCC with respect to Ground: -0.5V to 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 mA.

Features

AT90CAN128-16AU features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)133 Powerful Instructions- Most Single Clock Cycle Execution; (3)Fully Static Operation; (4)Up to 16 MIPS Throughput at 16 MHz; (5)Programming Lock for Software Security; (6)4K Bytes EEPROM (Endurance: 100,000 Write/Erase Cycles); (7)15 Full Message Objects with Separate Identifier Tags and Masks; (8)1M bits/s Maximum Transfer Rate at 8 MHz; (9)Programmable Watchdog Timer with On-chip Oscillator; (10)5 Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down & Standby.etc.

Diagrams

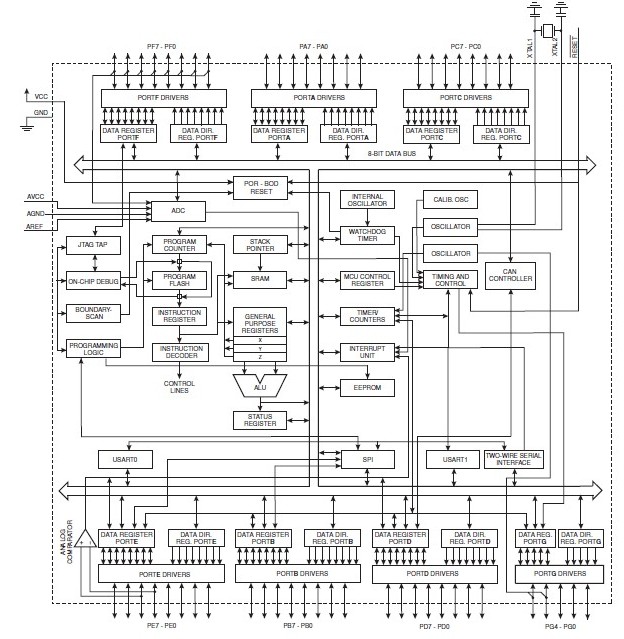

AT90CAN128-16AU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT90CAN128-16AU
AT90CAN128-16AU

Atmel

8-bit Microcontrollers (MCU) 128kB Flash 4kB EEPROM 53 I/O Pins

Data Sheet

0-1: $6.65
1-10: $5.54
10-25: $4.17
25-100: $3.77
AT90CAN128-16AUR
AT90CAN128-16AUR

Atmel

8-bit Microcontrollers (MCU) AVRC11 128K Flash Green

Data Sheet

0-821: $3.84
821-1000: $3.78
