Product Summary

The TPS61175PWP is a monolithic switching regulator with integrated 3-A, 40-V power switch. It can be configured in several standard switching-regulato topologies, including boost, SEPIC and flyback. The device has a wide input voltage range to support application with input voltage from multi-cell batteries or regulated 5-V, 12-V power rails. The applications of the TPS61175PWP include 5V to 12V, 24V power conversion, Supports SEPIC, Flyback topology, ADSL Modems, TV Tuner.

Parametrics

TPS61175PWP absolute maximum ratings: (1)Supply Voltages on pin VIN: -0.3 to 20 V; (2)Voltages on pins EN: -0.3 to 20 V; (3)Voltage on pin FB, FREQ and COMP -0.3 to 3 V; (4)Voltage on pin SYNC, SS -0.3 to 7 V; (5)Voltage on pin SW -0.3 to 40 V; (6)Continuous Power Dissipation: See Dissipation Rating Table; (7)Operating Junction Temperature Range: -40 to +150℃; (8)Storage Temperature Range: -65 to +150℃; (9)Lead Temperature (soldering, 10 sec): 260℃.

Features

TPS61175PWP features: (1)2.9-V to 18-V Input Voltage Range; (2)3A, 40V Internal Switch; (3)High Efficiency Power Conversion: Up to 93%; (4)Frequency Set by External Resistor: 200-kHz to 2.2-MHz; (5)Synchronous External Switching Frequency; (6)User Defined Soft Start into Full Load; (7)Skip-Switching Cycle for Output Regulation at Light load; (8)14-pin HTSSOP Package with PowerPad.

Diagrams

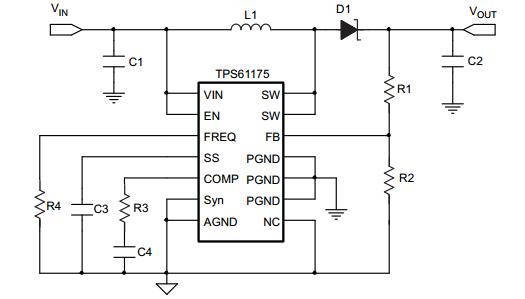

TPS61175PWP block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TPS61175PWP
TPS61175PWP

Texas Instruments

DC/DC Switching Regulators 3A High Vltg Boost Converter

Data Sheet

0-1: $3.25
1-25: $2.97
25-100: $2.38
100-250: $2.06
TPS61175PWPR
TPS61175PWPR

Texas Instruments

DC/DC Switching Regulators 3A High Vltg Boost Converter

Data Sheet

0-1570: $1.38
1570-2000: $1.35
2000-5000: $1.34
