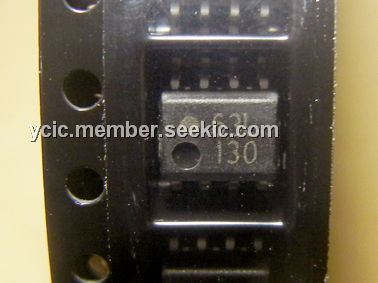

Product Summary
The HCPL-063L is a High Speed LVTTL Compatible 3.3 Volt Optocoupler. It combines a GaAsP light emitting diode and an integrated high gain photo detector. An enable input allows the detector to be strobed. The output of the HCPL-063L is an open collector Schottky-clamped transistor. The internal shield provides a guaranteed common mode transient immunity specifi cation of 15 kV/μs at 3.3V. The applications of the HCPL-063L include Isolated line receiver, Computer-peripheral interfaces, Microprocessor system interfaces, Digital isolation for A/D, D/A conversion, Switching power supply, Instrument input/output isolation, Ground loop elimination, Pulse transformer replacement and Field buses.
Parametrics
HCPL-063L absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 85℃; (3)Average Forward Input Current, IF: 20 mA max; (4)Reverse Input Voltage, VR: 5 V max; (5)Input Power Dissipation, PI: 40 mW max; (6)Supply Voltage (1 Minute Maximum), VCC: 7 V; (7)Enable Input Voltage, VE: VCC + 0.5V max; (8)Enable Input Current, IE: 5 mA; (9)Output Collector Current, IO: 50 mA max; (10)Output Collector Voltage, VO: 7 V max; (11)Output Collector Power Dissipation, PO: 85 mW max; (12)Lead Solder Temperature, TLS: 260℃ for 10 sec., 1.6 mm below seating plane.
Features
HCPL-063L features: (1)Low power consumption; (2)15 kV/s minimum Common Mode Rejection (CMR) at VCM = 50 V; (3)High speed: 15 MBd typical; (4)LVTTL/LVCMOS compatible; (5)Low input current capability: 5 mA; (6)Guaranteed AC and DC performance over temperature:- 40℃ to +85℃; (7)Available in 8-pin DIP, SOIC-8; (8)Strobable output (single channel products only); (9)Safety approvals: UL, CSA, VDE(pending).

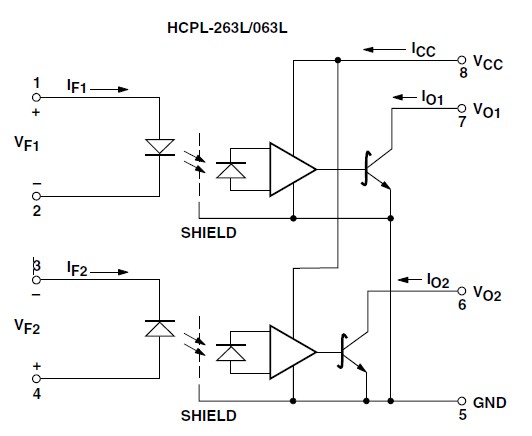

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-063L |
Avago Technologies |
High Speed Optocouplers 15MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-063L#500 |
Avago Technologies |
High Speed Optocouplers 15MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-063L-000E |
Avago Technologies |
High Speed Optocouplers 15MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-063L-500E |
Avago Technologies |
High Speed Optocouplers 15MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-063L-060E |
Avago Technologies |
High Speed Optocouplers 15MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-063L-560 |
Avago Technologies |
High Speed Optocouplers 15MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
|
HCPL-063L-560E |
Avago Technologies |
High Speed Optocouplers 15MBd 2Ch 5mA |
Data Sheet |
|
|
||||||||||||
