Product Summary

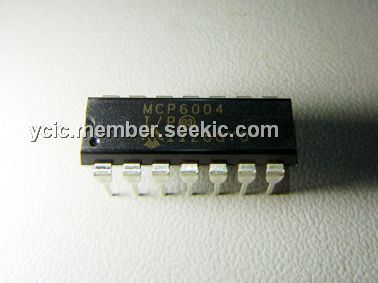

The MCP6004-I/P is a Low-Power operational amplifier. The device is specifically designed for general-purpose applications. The device has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typ.). It also maintains 45° phase margin (typ.) with a 500 pF capacitive load. The MCP6004-I/P operates from a single supply voltage as low as 1.8V, while drawing 100 μA (typ.) quiescent current. The applications of the MCP6004-I/P include Automotive Portable Equipment, Photodiode Amplifier, Analog Filters, Notebooks and PDAs, Battery-Powered Systems.

Parametrics

MCP6004-I/P absolute maximum ratings: (1)VDD-VSS: 7.0V; (2)All Inputs and Outputs: VSS-0.3V to VDD +0.3V; (3)Difference Input Voltage: |VDD– VSS|; (4)Output Short-Circuit Current: continuous; (5)Current at Input Pins: ±2 mA; (6)Current at Output and Supply Pins: ±30 mA; (7)Storage Temperature: -65℃ to +150℃; (8)Maximum Junction Temperature (TJ): +150℃; (9)ESD Protection On All Pins (HBM; MM): ≥4 kV; 200V.

Features

MCP6004-I/P features: (1)Available in SC-70-5 and SOT-23-5 packages; (2)Gain Bandwidth Product: 1 MHz (typ.); (3)Rail-to-Rail Input/Output; (4)Supply Voltage: 1.8V to 5.5V; (5)Supply Current: IQ = 100 μA (typ.); (6)Phase Margin: 90°(typ.); (7)Temperature Range: Industrial: -40℃ to +85℃; Extended: -40℃ to +125℃; (8)Available in Single, Dual and Quad Packages.

Diagrams

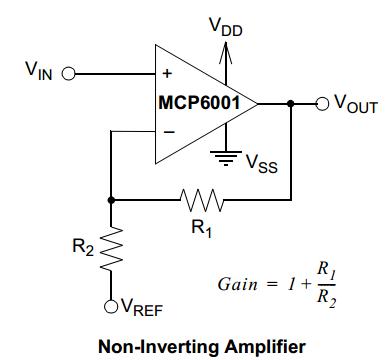

MCP6004-I/P block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCP6004-I/P
MCP6004-I/P

Microchip Technology

Operational Amplifiers - Op Amps Quad 1.8V 1MHz

Data Sheet

0-1: $0.29
1-10: $0.26
10-25: $0.22
25-100: $0.20
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MCP6001
MCP6001

Other


Data Sheet

Negotiable
MCP6001RT-E/OT
MCP6001RT-E/OT

Microchip Technology

Operational Amplifiers - Op Amps Single 1.8V 1MHz

Data Sheet

0-1: $0.19
1-10: $0.17
10-25: $0.14
25-100: $0.13
MCP6001RT-I/OT
MCP6001RT-I/OT

Microchip Technology

Operational Amplifiers - Op Amps Single 1.8V 1MHz

Data Sheet

0-1: $0.16
1-10: $0.14
10-25: $0.12
25-100: $0.11
MCP6001T-E/LT
MCP6001T-E/LT

Microchip Technology

Operational Amplifiers - Op Amps Single 1.8V 1MHz

Data Sheet

0-2350: $0.13
2350-3000: $0.13
MCP6001T-E/OT
MCP6001T-E/OT

Microchip Technology

Operational Amplifiers - Op Amps Single 1.8V 1MHz

Data Sheet

0-1: $0.19
1-10: $0.17
10-25: $0.14
25-100: $0.13
MCP6001T-I/LT
MCP6001T-I/LT

Microchip Technology

Operational Amplifiers - Op Amps Single 1.8V 1MHz

Data Sheet

0-1: $0.17
1-10: $0.16
10-25: $0.13
25-100: $0.11
