Product Summary

The NJM386M is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value up to 200. The inputs are ground reference while the output is automatically biased to one half the supply voltage. The quiescent power drain is only 24 milliwalts when operating from a 6 volt supply, making the NJM386M ideal for battery operation. The applications of the NJM386M include AM-FM radio amplifiers, Portable lapc player aniplitiers, Intercoms, TV sound systems, Line drivers, UUrasconic drivers, Small servo drivers, Power converters.

Parametrics

NJM386M absolute maximum ratings: (1)Supply Voltage: 15V; (2)Power Dissipation, Pd: (DIP8) 700mW; (SIP8) 800mW; (DMP8) 300mW; (3)Input Voltage Range, VlN: 0.4V; (4)Operating Temperature Range, Topr: -40℃ to 85℃; (5)Storage Temperature Range, Tstg: -40℃ to +125℃.

Features

NJM386M features: (1)Operating Voltage: (4V to 12V); (2)Minimum External Components; (3)Low Operating Current: 3mA); (4)Voltage Gain: (20 to 200); (5)Single Supply Operation; (6)Self-centering of Output Offset Voltage; (7)Package Outline, DIP8, SIP8, DMP8; (8)Bipolar Technology.

Diagrams

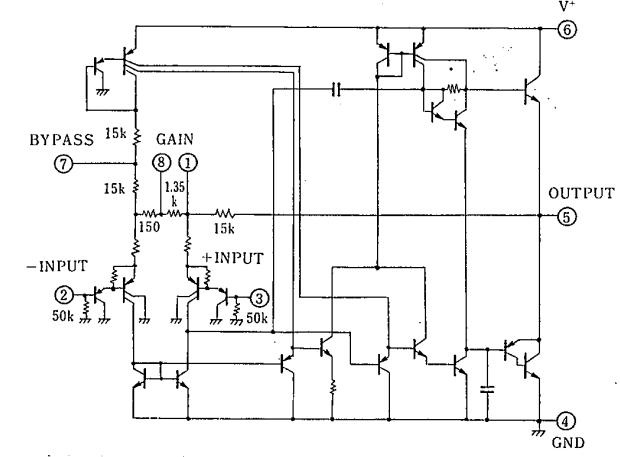

NJM386M block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
NJM386M-T1
NJM386M-T1

NJR

Audio Amplifiers Low Voltage

Data Sheet

Negotiable
NJM386M-T2
NJM386M-T2

NJR

Audio Amplifiers Low Voltage

Data Sheet

Negotiable
NJM386M-TE1
NJM386M-TE1

NJR

Audio Amplifiers Low Voltage

Data Sheet

0-2000: $0.25
2000-6000: $0.24
6000-10000: $0.22
10000-26000: $0.21
NJM386M-TE2
NJM386M-TE2

NJR

Audio Amplifiers Low Voltage

Data Sheet

0-2000: $0.25
2000-6000: $0.24
6000-10000: $0.22
10000-26000: $0.21
NJM386M-TE3
NJM386M-TE3

NJR

Audio Amplifiers Low Voltage

Data Sheet

0-2000: $0.25
2000-6000: $0.24
6000-10000: $0.22
10000-26000: $0.21
NJM386M
NJM386M

NJR

Audio Amplifiers Low Voltage

Data Sheet

0-1: $0.34
1-100: $0.31
100-1000: $0.28
1000-2000: $0.25
