Product Summary
The SN65HVD3082EDR is a half-duplex transceiver. It is designed for RS-485 data bus networks. Powered by a 5-V supply, it is fully compliant with TIA/EIA-485A standard. It is suitable for transmitting data over long twisted-pair cables.
Parametrics
SN65HVD3082EDR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Voltage range at A or B: -9 V to 14 V; (3)Voltage range at any logic pin: -0.3 V to VCC +0.3 V; (4)Receiver output current: -24 mA to 24 mA; (5)Voltage input range, transient pulse, A and B, through 100 Ω: 50 V to 50 V; (6)Junction temperature, TJ: 170℃.
Features
SN65HVD3082EDR features: (1)Available in Small MSOP-8 Package; (2)Meets or Exceeds the Requirements of the TIA/EIA.485A Standard; (3)Low Quiescent Power: -0.3mA Active Mode; -1nA Shutdown Mode; (4)1/8 Unit Load—Up to 256 Nodes on a Bus; (5)Bus-Pin ESD Protection Up to 15 kV; (6)Industry-Standard SN75176 Footprint; (7)Failsafe Receiver (Bus Open, Bus Shorted, Bus Idle).

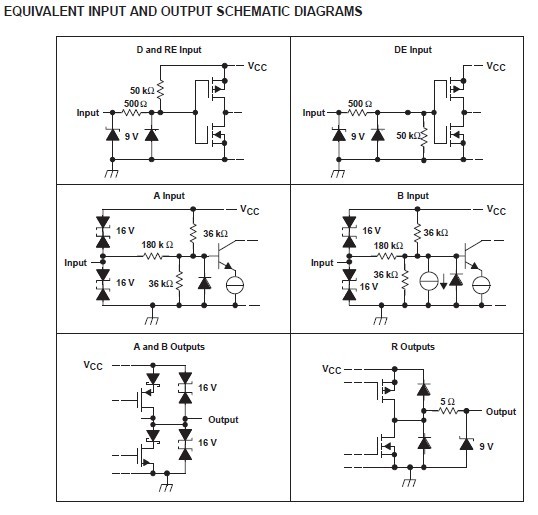

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65HVD3082EDR |
Texas Instruments |
Buffers & Line Drivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
|
SN65HVD3082EDRG4 |
Texas Instruments |
Bus Transceivers Low-Power RS-485 Transceiver |
Data Sheet |
|
|
||||||||||||
