Product Summary

The STM32F405RGT6 is an ARM Cortex-M4 32b MCU+FPU. The STM32F405RGT6 is based on the high-performance ARM Cortex-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The Cortex-M4 core with FPU will be referred to as Cortex-M4F throughout this document. The STM32F405RGT6 incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM).

Parametrics

STM32F405RGT6 absolute maximum ratings: (1)External main supply voltage (including VDDA,VDD), VDD–VSS: -0.3 to 4.0V; (2)Input voltage on five-volt tolerant pin, VIN: VSS -0.3 to VDD +4V; Input voltage on any other pin, VIN: VSS -0.3 to 4.0V; (3)Variations between different VDDpower pins, |ΔVDDx|: 50mV; (4)Variations between all the different ground pins, |VSSX - VSS|: 50mV.

Features

STM32F405RGT6 features: (1)Memories, Up to 1 Mbyte of Flash memory; Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data ; (2)RAM; Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories; (3)LCD parallel interface, 8080/6800 modes; (4)Clock, reset and supply management, 1.8 V to 3.6 V application supply and I/Os; POR, PDR, PVD and BOR; 4-to-26 MHz crystal oscillator; Internal 16 MHz factory-trimmed RC (1% ; (5)accuracy); 32 kHz oscillator for RTC with calibration; Internal 32 kHz RC with calibration; (6)Low power, Sleep, Stop and Standby modes; VBATsupply for RTC, 20×32 bit backup registers + optional 4 KB backup SRAM; (7)3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS intriple interleaved mode; (8)2×12-bit D/A converters; (9)General-purpose DMA: 16-stream DMA controller with FIFOs and burst support; (10)Up to 17 timers: up to twelve 16-bit and two 32-bit timers up to 168 MHz, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input; (11)8- to 14-bit parallel camera interface up to 54 Mbytes/s; (12)True random number generator; (13)CRC calculation unit; (14)96-bit unique ID; (15)RTC: subsecond accuracy, hardware calendar.

Diagrams

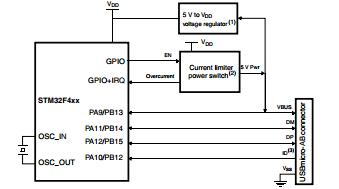

STM32F405RGT6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM32F405RGT6
STM32F405RGT6

STMicroelectronics

ARM Microcontrollers (MCU) ARM M4 1024 FLASH 168 Mhz 192kB SRAM

Data Sheet

0-1: $6.87
1-10: $6.24
10-100: $5.30
100-250: $4.84
