6N137

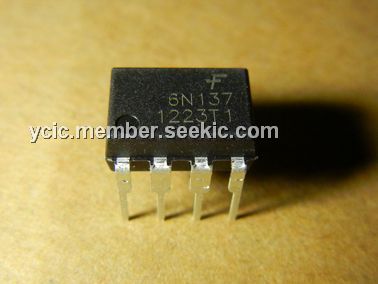

6N137, single-channel optocoupler, DIP-8, 50mA, 100 mW, 5.5 V, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.02~0.03 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.02~0.03

PartNumber:: 6N137

Brand:: Fairchild Semiconductor - Fairchild | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Lena's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-18

From Other Seller

Part Number:6N137
US $0.02 - 0.03
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

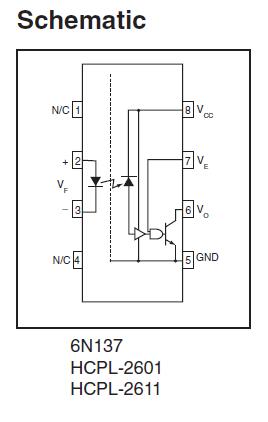

The 6N137 is a single-channel optocoupler. It consists of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. This output of 6N137 features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40℃ to +85℃. A maximum input signal of 5 mA will provide a minimum output sink current of 13mA (fan out of 8). The applications of the 6N137 include Ground loop elimination, LSTTL to TTL, LSTTL or 5-volt CMOS, Line receiver, data transmission, Data multiplexing, Switching power supplies, Pulse transformer replacement, Computer-peripheral interface.

Parametrics

6N137 absolute maximum ratings: (1)Storage Temperature: -55 to +125 ℃; (2)Operating Temperature: -40 to +85 ℃; (3)Lead Solder Temperature: 260 for 10 sec ℃; (4)DC/Average Forward: 50 mA at Single Channel; (5)Input Current: 30 mA at Dual Channel (Each Channel); (6)Enable Input Voltage Not to exceed VCC by more than 500 mV: 5.5 V at Single Channel; (7)Reverse Input Voltage: 5.0 V at Each Channel; (8)Power Dissipation: 100 mW at Single Channel; (9)Dual Channel (Each Channel): 45 mW.

Features

6N137 features: (1)Very high speed-10 MBit/s; (2)Superior CMR-10 kV/μs; (3)Double working voltage-480V; (4)Fan-out of 8 over -40℃ to +85℃; (5)Logic gate output; (6)Strobable output; (7)Wired OR-open collector; (8)U.L. recognized.
