Product Summary

The 74HC393PW is a 4-bit binary ripple counter with separate clocks (1CP and 2CP) and master reset (1MR and 2MR) inputs to each counter. The 74HC393PW is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL (LSTTL). The device is specified in compliance with JEDEC standard no. 7A. The operation of each half of the “393” is the same as the “93” except no external clock connections are required. The counter is triggered by a HIGH-to-LOW transition of the clock inputs. The counter outputs are internally connected to provide clock inputs to succeeding stages. The outputs of the ripple counter do not change synchronously and should not be used for high-speed address decoding.

Parametrics

74HC393PW absolute maximum ratings: (1)CL: 15 pF; (2)VCC: 6 V; (3)Tamb: -40 to +125℃; (4)tPHL/tPLH: 190ns.

Features

74HC393PW features: (1)Two 4-bit binary counters with individual clocks; (2)Divide-by any binary module up to 28 in one package; (3)Two master resets to clear each 4-bit counter individually; (4)Output capability: standard; (5)ICCcategory: MSI.

Diagrams

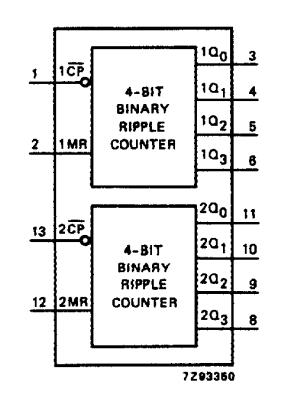

74HC393PW block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

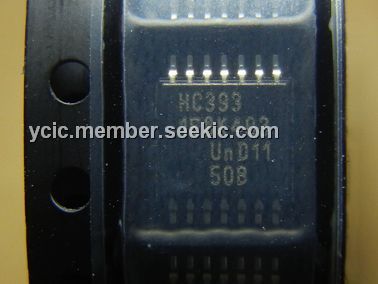

74HC393PW
74HC393PW

NXP Semiconductors

Counter ICs DUAL 4-BIT BINARY RIPPLE COUNT

Data Sheet

Negotiable
74HC393PW,112
74HC393PW,112

NXP Semiconductors

Counter ICs DUAL 4-BIT BINARY

Data Sheet

0-1: $0.28
1-25: $0.23
25-100: $0.19
100-250: $0.16
74HC393PW-T
74HC393PW-T

NXP Semiconductors

Counter ICs DUAL 4-BIT BINARY RIPPLE COUNT

Data Sheet

Negotiable
74HC393PW,118
74HC393PW,118

NXP Semiconductors

Counter Shift Registers DUAL 4-BIT BINARY

Data Sheet

0-1: $0.10
1-25: $0.10
25-100: $0.08
100-250: $0.08
