Product Summary

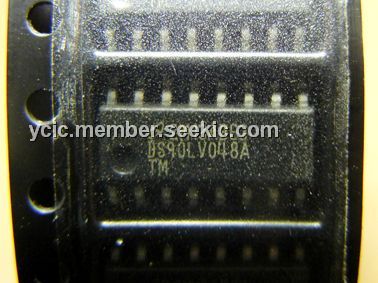

The DS90LV048ATM is a quad CMOS flow-through differential line receiver designed for applications requiring ultra low power dissipation and high data rates. The DS90LV048ATM is designed to support data rates in excess of 400 Mbps (200MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The device accepts low voltage (350 mV typical) differential input signals and translates them to 3V CMOS output levels.

Parametrics

DS90LV048ATM absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)Input Voltage (RIN+,RIN-): -0.3V to 3.9V; (3)Enable Input Voltage (EN, EN): -0.3V to (VCC + 0.3V); (4)Output Voltage (ROUT): -0.3V to (VCC + 0.3V); (5)Lead Temperature Range Soldering(4 sec.): +260℃; (6)Maximum Junction Temperature: +150℃.

Features

DS90LV048ATM features: (1)>400 Mbps (200 MHz) switching rates; (2)Flow-through pinout simplifies PCB layout; (3)150 ps channel-to-channel skew (typical); (4)100 ps differential skew (typical); (5)2.7 ns maximum propagation delay; (6)3.3V power supply design; (7)High impedance LVDS inputs on power down; (8)Low Power design (40mW 3.3V static); (9)Interoperable with existing 5V LVDS drivers; (10)Accepts small swing (350 mV typical) differential signal levels; (11)Supports open, short and terminated input fail-safe; (12)0V to -100mV threshold region; (13)Conforms to ANSI/TIA/EIA-644 Standard; (14)Industrial temperature operating range (-40℃ to +85℃); (15)Available in SOIC and TSSOP package.

Diagrams

DS90LV048ATM block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DS90LV048ATM
DS90LV048ATM

National Semiconductor (TI)

LVDS Interface IC

Data Sheet

0-288: $1.31
288-528: $1.14
528-1008: $0.91
1008-2544: $0.86
DS90LV048ATM/DRPB
DS90LV048ATM/DRPB


IC LINE RCVR QUAD CMOS 16-SOIC

Data Sheet

Negotiable
DS90LV048ATMTC/NOPB
DS90LV048ATMTC/NOPB

National Semiconductor (TI)

LVDS Interface IC 3V LVDS QUAD CMOS DIFF LINE RECEIVER

Data Sheet

0-1: $1.83
1-25: $1.47
25-100: $1.34
100-250: $1.21
DS90LV048ATM/NOPB
DS90LV048ATM/NOPB

National Semiconductor (TI)

LVDS Interface IC 3V LVDS QUAD CMOS DIFF LINE RECEIVER

Data Sheet

0-1: $1.83
1-25: $1.47
25-100: $1.34
100-250: $1.21
DS90LV048ATMTC
DS90LV048ATMTC

National Semiconductor (TI)

LVDS Interface IC

Data Sheet

0-276: $1.31
276-552: $1.14
552-1012: $0.91
1012-2576: $0.87
DS90LV048ATMTC/DRPB
DS90LV048ATMTC/DRPB


IC LINE RCVR QUAD CMOS 16-TSSOP

Data Sheet

Negotiable
DS90LV048ATMX/NOPB
DS90LV048ATMX/NOPB

National Semiconductor (TI)

LVDS Interface IC

Data Sheet

0-1: $1.96
1-25: $1.60
25-100: $1.43
100-250: $1.31
DS90LV048ATMTCX/NOPB
DS90LV048ATMTCX/NOPB

National Semiconductor (TI)

LVDS Interface IC

Data Sheet

0-1: $1.96
1-25: $1.60
25-100: $1.43
100-250: $1.31
