Product Summary
The HCPL-M611-500E is a small outline high CMR, high speed, logic gate optocoup-ler. It is a single channel device in a five lead miniature footprint. The device is electrically equivalent to the following Agilent optocoupler. The HCPL-M611-500E registered (MO-155) package outline does not require “through holes” in a PCB. This package occupies approximately one fourth the footprint area of the standard dual-in-line package. The lead profile is designed to be com-patible with standard surface mount processes. The applications of the include solated Line Receiver, Simplex/Multiplex Data Transmission, Computer-Peripheral Interface, Microprocessor System Interface, Digital Isolation for A/D, D/A Conversion, Switching Power Supply, Instrument Input/Output Isolation, Ground Loop Elimination, Pulse Transformer Replacement.
Parametrics
HCPL-M611-500E absolute maximum ratings: (1)Storage Temperature: -55℃ to +125℃; (2)Operating Temperature: -40℃ to +85℃; (3)Forward Input Current - IF: 20 mA; (4)Reverse Input Voltage - VR: 5 V; (5)Supply Voltage - VCC (1 Minute Maximum): 7 V; (6)Output Collector Current - IO: 50 mA; (7)Output Collector Power Dissipation: 85 mW; (8)Output Collector Voltage - VO: 7 V.
Features
HCPL-M611-500E features: (1)Surface Mountable; (2)Very Small, Low Profile JEDEC Registered Package Outline; (3)Compatible with Infrared Vapor Phase Reflow and Wave Soldering Processes; (4)Internal Shield for High Common Mode Rejection (CMR); HCPL-M601: 10,000 V/μs at VCM = 50 V; HCPL-M611: 15,000 V/μs at VCM = 1000 V; (5)High Speed: 10 Mbd; (6)LSTTL/TTL Compatible; (7)Low Input Current Capability: 5 mA; (8)Guaranteed ac and dc Performance over Temperature: -40℃ to 85℃; (9)Recognized under the Component Program of U.L. (File No. E55361) for Dielectric Withstand Proof Test Voltage of 2500 Vac, 1 Minute.

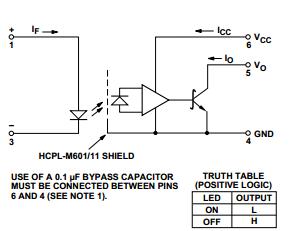

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HCPL-M611-500E |
Avago Technologies |
High Speed Optocouplers 10MBd 3750Vdc |
Data Sheet |
|
|
||||||||||||
