Product Summary

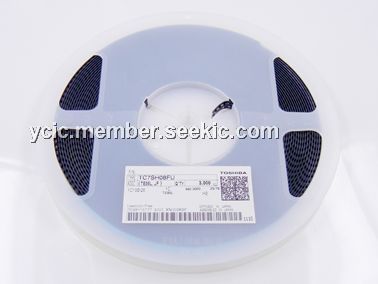

The TC7SH08FU is a Single 2-Input AND Gate. The TC7SH08FU achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The internal circuit is composed of 4 stages including buffer output, which provide high noise immunity and stable output. An input protection circuit ensures that 0 to 7V can be applied to the input pins without regard to the supply voltage. The TC7SH08FU can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.
Parametrics
TC7SH08FU absolute maximum ratings: (1)Supply voltage VCC: -0.5 to 7 V; (2)DC input voltage VIN: -0.5 to 7 V; (3)DC output voltage VOUT: -0.5 to VCC + 0.5 V; (4)Input diode current IIK: -20 mA; (5)Output diode current IOKL: ±20mA; (6)DC output current IOUT: ±25 mA; (7)DC VCC/ground current ICC: ±50 mA; (8)Power dissipation PD: 200mW; (9)Storage temperature Tstg: -65℃ to 150℃; (10)Lead temperature (10 s) TL: 260℃.
Features
TC7SH08FU features: (1)High speed: tpd = 4.3ns (typ.) at VCC = 5V; (2)Low power dissipation : ICC = 2μA(max) at Ta = 25℃; (3)High noise immunity : VNIH = VNIL = 28% VCC (min); (4)power down protection is provided on all inputs; (5)Wide operating voltage range : VCC= 2 to 5.5V; (6)Banlanced Propagation Delays: tpLH ≈ tpHL.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TC7SH08FUT5LFT |
IC GATE AND 2INPUT ADV HS SSOP5 |
Data Sheet |
|
|
||||||||||||||
TC7SH08FUT5LJFT |
Toshiba |
Gates (AND / NAND / OR / NOR) x34 VHC-SCHMITT INV |
Data Sheet |
|
|
